TPD1E04U04DPLT

Enlarger

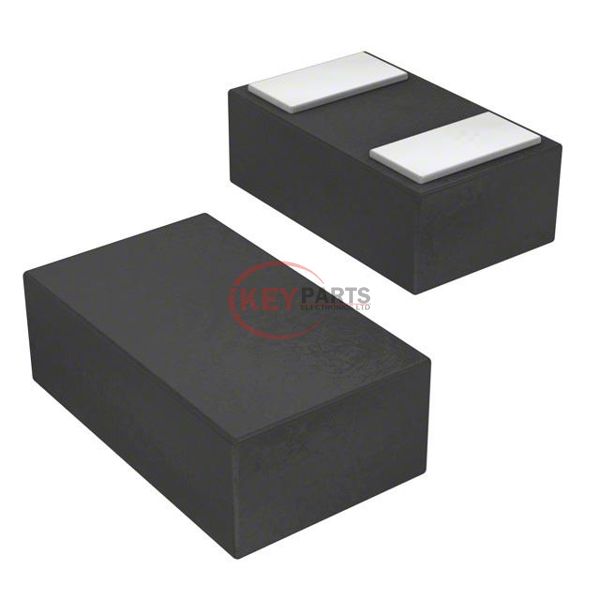

Lmages are for reference only See Product Specitications

Texas Instruments TPD1E04U04DPLT

Manufacturer :
Texas Instruments
Mfr. Part # :
TPD1E04U04DPLT
Description
TVS DIODE 3.6V 8.9V 2X2SON
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPD1E04U04DPLT PDF
In Stock
790610000
TPD1E04U04DPLT Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeSteering (Rail to Rail)
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)4.5V
Voltage - Clamping (Max) @ Ipp8.9V
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse16W
Power Line ProtectionYes
ApplicationsHDMI
Capacitance @ Frequency0.5pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device Package2-X2SON (0.6x0.3)
Request Quote Now
Request Quote Now

We can supply TPD1E04U04DPLT, use the request quote form to request TPD1E04U04DPLT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPD1E04U04DPLT. The price and lead time for TPD1E04U04DPLT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPD1E04U04DPLT. We look forward to working with you to establish long-term relations of cooperation.
