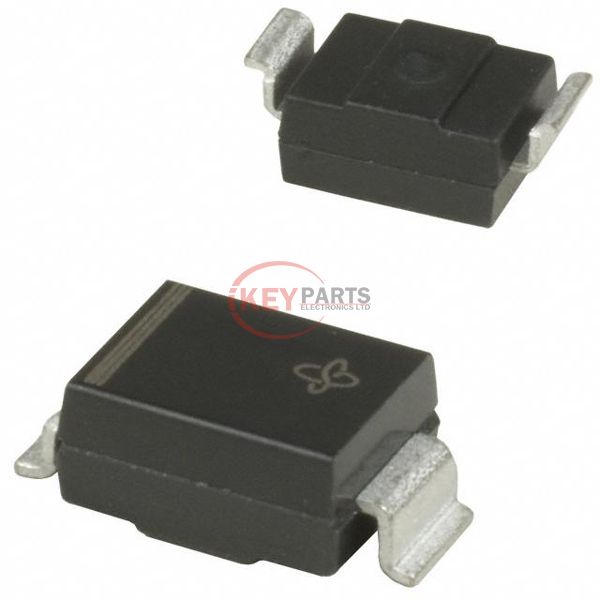

SMBG22AHE3/5B

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division SMBG22AHE3/5B

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
SMBG22AHE3/5B
Description
TVS DIODE 22V 35.5V DO215AA
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMBG22AHE3/5B PDF
In Stock
996
SMBG22AHE3/5B Tech Specifications
SeriesAutomotive, AEC-Q101, TransZorb®
PackageTape & Reel (TR)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)16.9A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-215AA, SMB Gull Wing
Supplier Device PackageDO-215AA (SMBG)
Request Quote Now
Request Quote Now

We can supply SMBG22AHE3/5B, use the request quote form to request SMBG22AHE3/5B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMBG22AHE3/5B. The price and lead time for SMBG22AHE3/5B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMBG22AHE3/5B. We look forward to working with you to establish long-term relations of cooperation.
