SMPC22AN-M3/H

Enlarger

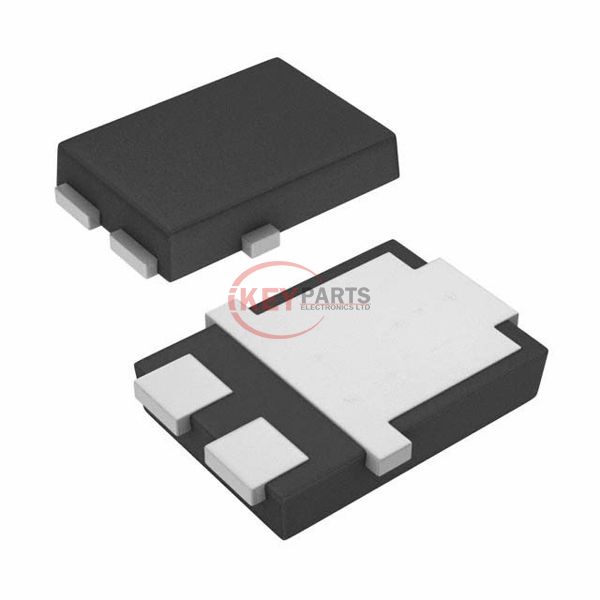

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division SMPC22AN-M3/H

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
SMPC22AN-M3/H
Description
TVS DIODE 22V 35.5V TO277A
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMPC22AN-M3/H PDF
SMPC22AN-M3/H Tech Specifications
SeriesTransZorb®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)42.3A
Power - Peak Pulse1500W (1.5kW)
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-277, 3-PowerDFN
Supplier Device PackageTO-277A (SMPC)
Request Quote Now
Request Quote Now

We can supply SMPC22AN-M3/H, use the request quote form to request SMPC22AN-M3/H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMPC22AN-M3/H. The price and lead time for SMPC22AN-M3/H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMPC22AN-M3/H. We look forward to working with you to establish long-term relations of cooperation.
