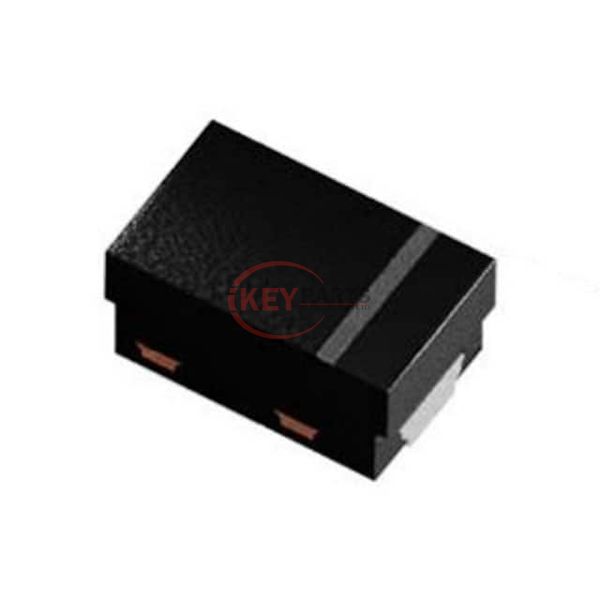

VCUT0714BHD1-G3-08

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division VCUT0714BHD1-G3-08

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
VCUT0714BHD1-G3-08
Description
ESD PROTECTION DIODE DFN1006-2A
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
VCUT0714BHD1-G3-08 PDF
In Stock
748
VCUT0714BHD1-G3-08 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)7V, 14V
Voltage - Breakdown (Min)7.3V, 14.5V
Voltage - Clamping (Max) @ Ipp15V, 30V
Current - Peak Pulse (10/1000µs)3.6A (8/20µs), 2A (8/20µs)
Power - Peak Pulse50W, 61W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency8pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device PackageDFN1006-2A
Request Quote Now
Request Quote Now

We can supply VCUT0714BHD1-G3-08, use the request quote form to request VCUT0714BHD1-G3-08 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VCUT0714BHD1-G3-08. The price and lead time for VCUT0714BHD1-G3-08 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VCUT0714BHD1-G3-08. We look forward to working with you to establish long-term relations of cooperation.
