TPD1E1B04DPYR

Enlarger

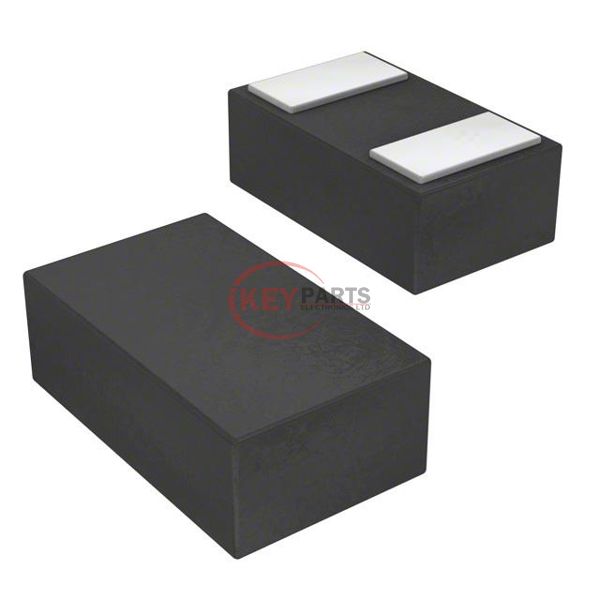

Lmages are for reference only See Product Specitications

Texas Instruments TPD1E1B04DPYR

Manufacturer :
Texas Instruments
Mfr. Part # :
TPD1E1B04DPYR
Description
TVS DIODE 3.6V 8.5V 2X1SON
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPD1E1B04DPYR PDF
In Stock
704
TPD1E1B04DPYR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)6.4V (Typ)
Voltage - Clamping (Max) @ Ipp8.5V (Typ)
Current - Peak Pulse (10/1000µs)6.3A (8/20µs)
Power - Peak Pulse50W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency1pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device Package2-X1SON (1x.60)
Request Quote Now
Request Quote Now

We can supply TPD1E1B04DPYR, use the request quote form to request TPD1E1B04DPYR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPD1E1B04DPYR. The price and lead time for TPD1E1B04DPYR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPD1E1B04DPYR. We look forward to working with you to establish long-term relations of cooperation.
