SMLJ22A-Q

Enlarger

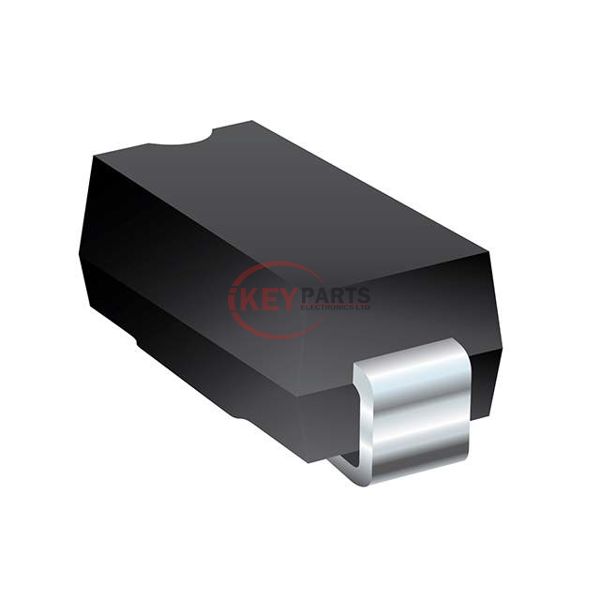

Lmages are for reference only See Product Specitications

J.W. Miller / Bourns SMLJ22A-Q

Manufacturer :
J.W. Miller / Bourns
Mfr. Part # :
SMLJ22A-Q
Description
TVS DIODE 22V 35.5V SMC
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMLJ22A-Q PDF
In Stock
976
SMLJ22A-Q Tech Specifications
SeriesAutomotive, AEC-Q101, SMLJ
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)84.4A
Power - Peak Pulse3000W (3kW)
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC (DO-214AB)
Request Quote Now
Request Quote Now

We can supply SMLJ22A-Q, use the request quote form to request SMLJ22A-Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMLJ22A-Q. The price and lead time for SMLJ22A-Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMLJ22A-Q. We look forward to working with you to establish long-term relations of cooperation.
