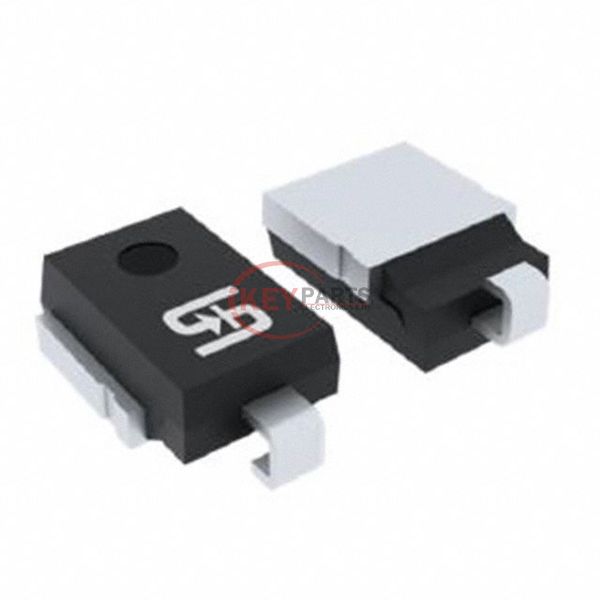

TLD5S22AH

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TLD5S22AH

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TLD5S22AH
Description
3600W,10V-43V SURFACE MOUNT TRAN
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TLD5S22AH PDF
TLD5S22AH Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)101A
Power - Peak Pulse2800W (2.8kW)
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-218AB
Supplier Device PackageDO-218AB
Request Quote Now
Request Quote Now

We can supply TLD5S22AH, use the request quote form to request TLD5S22AH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TLD5S22AH. The price and lead time for TLD5S22AH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TLD5S22AH. We look forward to working with you to establish long-term relations of cooperation.
