SZESDR0502BT1G

Enlarger

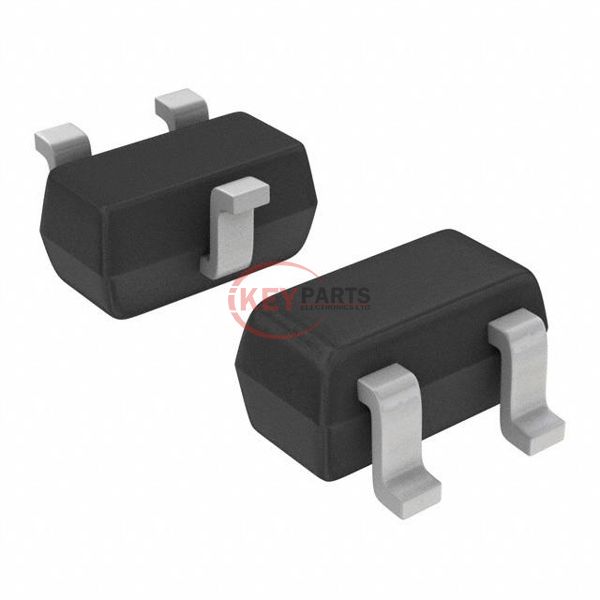

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SZESDR0502BT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SZESDR0502BT1G
Description
TVS DIODE 5V 15V SC75
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SZESDR0502BT1G PDF
In Stock
710297000
SZESDR0502BT1G Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels2
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)5.8V
Voltage - Clamping (Max) @ Ipp15V
Current - Peak Pulse (10/1000µs)2A (8/20µs)
Power - Peak Pulse20W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency0.5pF @ 1MHz, 0.25pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-75, SOT-416
Supplier Device PackageSC-75, SOT-416
Request Quote Now
Request Quote Now

We can supply SZESDR0502BT1G, use the request quote form to request SZESDR0502BT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SZESDR0502BT1G. The price and lead time for SZESDR0502BT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SZESDR0502BT1G. We look forward to working with you to establish long-term relations of cooperation.
