SMBJ22A R5G

Enlarger

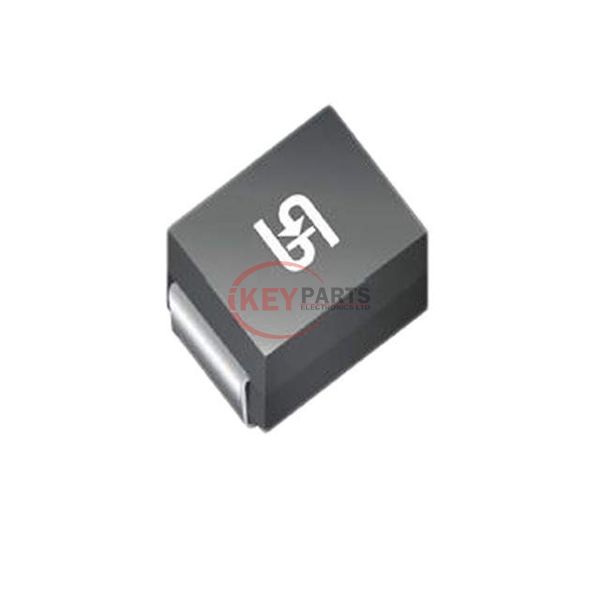

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) SMBJ22A R5G

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
SMBJ22A R5G
Description
TVS DIODE 22V 35.5V DO214AA
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMBJ22A R5G PDF
In Stock
1300
SMBJ22A R5G Tech Specifications
SeriesSMBJ
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)17.7A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageDO-214AA (SMB)
Request Quote Now
Request Quote Now

We can supply SMBJ22A R5G, use the request quote form to request SMBJ22A R5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMBJ22A R5G. The price and lead time for SMBJ22A R5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMBJ22A R5G. We look forward to working with you to establish long-term relations of cooperation.
