Series | Automotive, AEC-Q101 | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 22V | |
Voltage - Breakdown (Min) | 24.4V | |
Voltage - Clamping (Max) @ Ipp | 35.5V | |
Current - Peak Pulse (10/1000µs) | 16.9A | |
Power - Peak Pulse | 600W | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

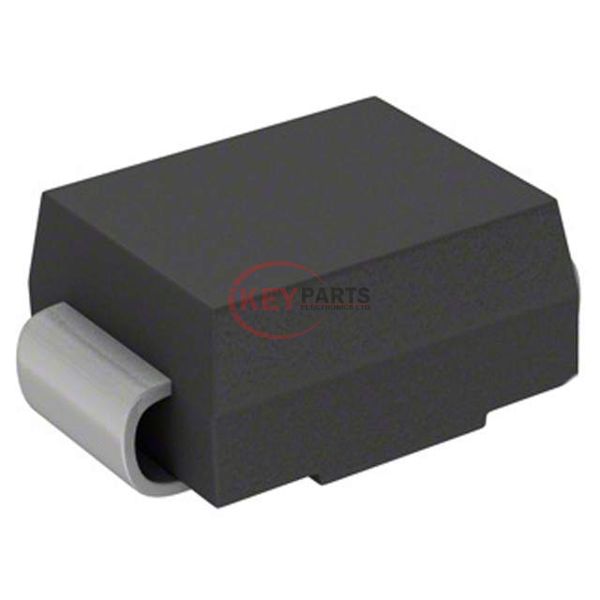

Package / Case | DO-214AA, SMB | |
Supplier Device Package | SMB |
We can supply SMBJ22AQ-13-F, use the request quote form to request SMBJ22AQ-13-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMBJ22AQ-13-F. The price and lead time for SMBJ22AQ-13-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMBJ22AQ-13-F. We look forward to working with you to establish long-term relations of cooperation.
![]() |
