Series | Automotive, AEC-Q101, SMB15F | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 22V (Max) | |
Voltage - Breakdown (Min) | 24.4V | |
Voltage - Clamping (Max) @ Ipp | 48.3V | |
Current - Peak Pulse (10/1000µs) | 207A (8/20µs) | |
Power - Peak Pulse | 1500W (1.5kW) | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

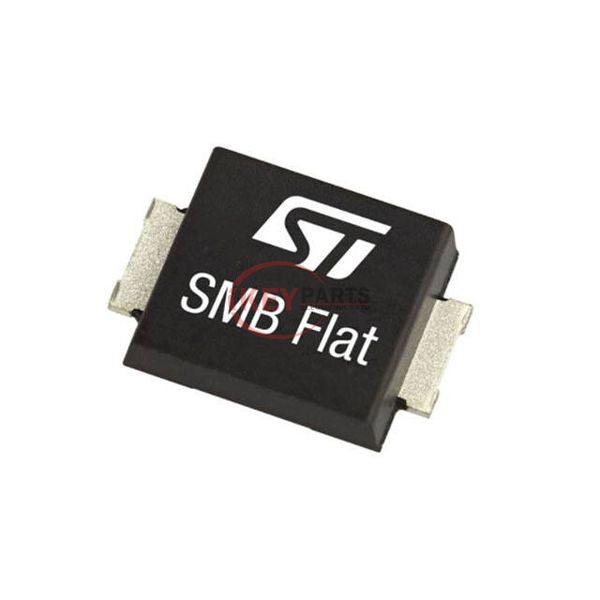

Package / Case | DO-221AA, SMB Flat Leads | |
Supplier Device Package | SMBflat |
We can supply SMB15F22AY, use the request quote form to request SMB15F22AY pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMB15F22AY. The price and lead time for SMB15F22AY depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMB15F22AY. We look forward to working with you to establish long-term relations of cooperation.
![]() |
