SZ1SMB22CAT3G

Enlarger

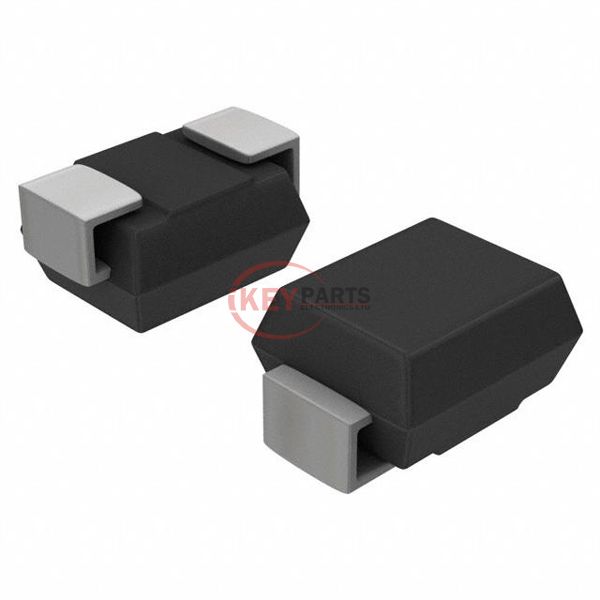

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse SZ1SMB22CAT3G

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
SZ1SMB22CAT3G
Description
TVS DIODE 22V 35.5V SMB
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SZ1SMB22CAT3G PDF
SZ1SMB22CAT3G Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)16.9A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency390pF @ 1MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB
Request Quote Now
Request Quote Now

We can supply SZ1SMB22CAT3G, use the request quote form to request SZ1SMB22CAT3G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SZ1SMB22CAT3G. The price and lead time for SZ1SMB22CAT3G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SZ1SMB22CAT3G. We look forward to working with you to establish long-term relations of cooperation.
