SMA5J22A-E3/5A

Enlarger

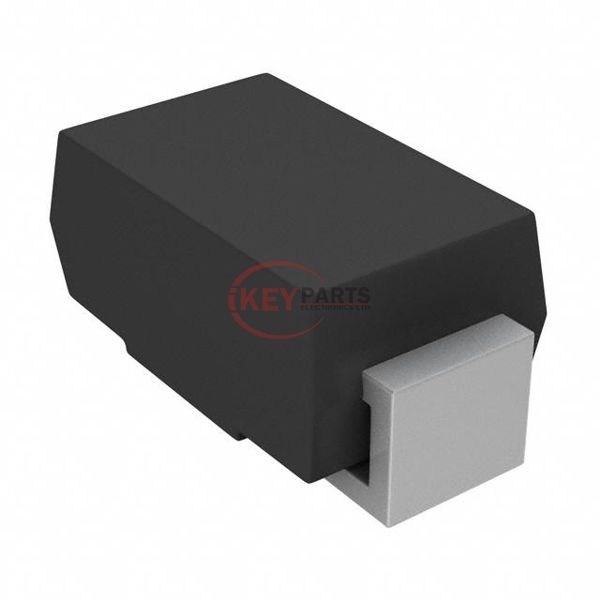

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division SMA5J22A-E3/5A

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
SMA5J22A-E3/5A
Description
TVS DIODE 22V 35.5V DO214AC
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMA5J22A-E3/5A PDF
In Stock
436
SMA5J22A-E3/5A Tech Specifications
SeriesTransZorb®
PackageTape & Reel (TR)
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)14.1A
Power - Peak Pulse500W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
Request Quote Now
Request Quote Now

We can supply SMA5J22A-E3/5A, use the request quote form to request SMA5J22A-E3/5A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMA5J22A-E3/5A. The price and lead time for SMA5J22A-E3/5A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMA5J22A-E3/5A. We look forward to working with you to establish long-term relations of cooperation.
