ESDS304DBVR

Enlarger

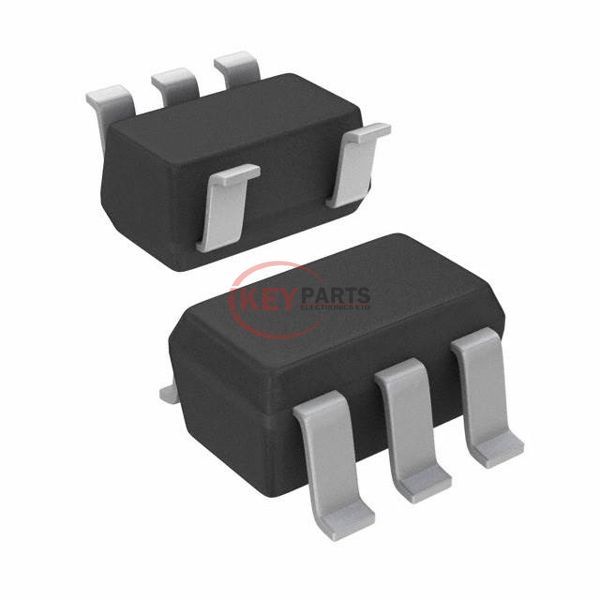

Lmages are for reference only See Product Specitications

Texas Instruments ESDS304DBVR

Manufacturer :
Texas Instruments
Mfr. Part # :
ESDS304DBVR
Description
FAMILY OF UNI-DIRECTIONAL SURGE
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ESDS304DBVR PDF
In Stock
4227
ESDS304DBVR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels4
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)4.5V
Voltage - Clamping (Max) @ Ipp3V (Typ)
Current - Peak Pulse (10/1000µs)12A (8/20µs)
Power - Peak Pulse85W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency2.3pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
Request Quote Now
Request Quote Now

We can supply ESDS304DBVR, use the request quote form to request ESDS304DBVR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ESDS304DBVR. The price and lead time for ESDS304DBVR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ESDS304DBVR. We look forward to working with you to establish long-term relations of cooperation.
