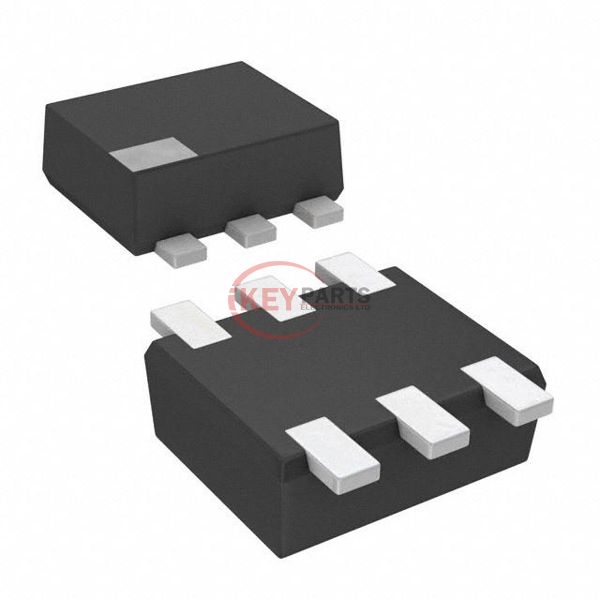

NP0G3D200A

Enlarger

Lmages are for reference only See Product Specitications

Panasonic NP0G3D200A

Manufacturer :
Panasonic
Mfr. Part # :
NP0G3D200A
Description
TRANS PREBIAS NPN/PNP SSSMINI6
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NP0G3D200A PDF
In Stock
7620
NP0G3D200A Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)80mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)4.7kOhms, 22kOhms
Resistor - Emitter Base (R2)4.7kOhms, 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 5mA, 10V / 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz, 80MHz
Power - Max125mW
Mounting TypeSurface Mount
Package / CaseSOT-963
Supplier Device PackageSSSMini6-F1
Request Quote Now
Request Quote Now

We can supply NP0G3D200A, use the request quote form to request NP0G3D200A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NP0G3D200A. The price and lead time for NP0G3D200A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NP0G3D200A. We look forward to working with you to establish long-term relations of cooperation.
