IMD10AMT1G

Enlarger

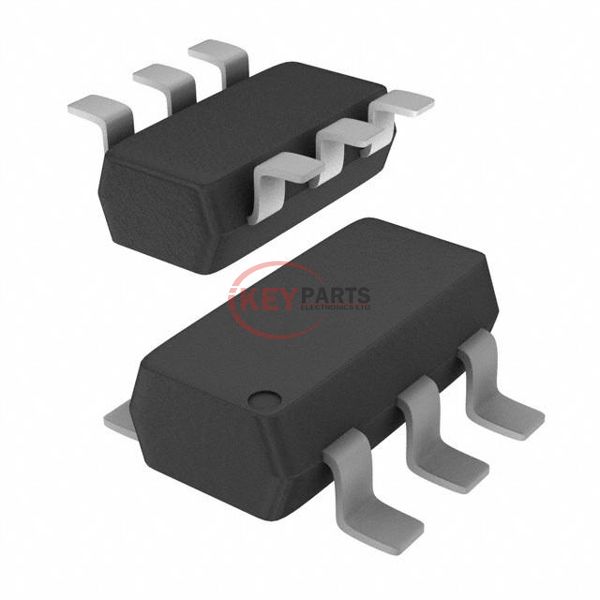

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor IMD10AMT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
IMD10AMT1G
Description
TRANS NPN/PNP PREBIAS SC74R
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IMD10AMT1G PDF
IMD10AMT1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)13kOhms, 130Ohms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 1mA, 5V / 68 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max285mW
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device PackageSC-74R
Request Quote Now
Request Quote Now

We can supply IMD10AMT1G, use the request quote form to request IMD10AMT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMD10AMT1G. The price and lead time for IMD10AMT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IMD10AMT1G. We look forward to working with you to establish long-term relations of cooperation.
