NSB1706DMW5T1G

Enlarger

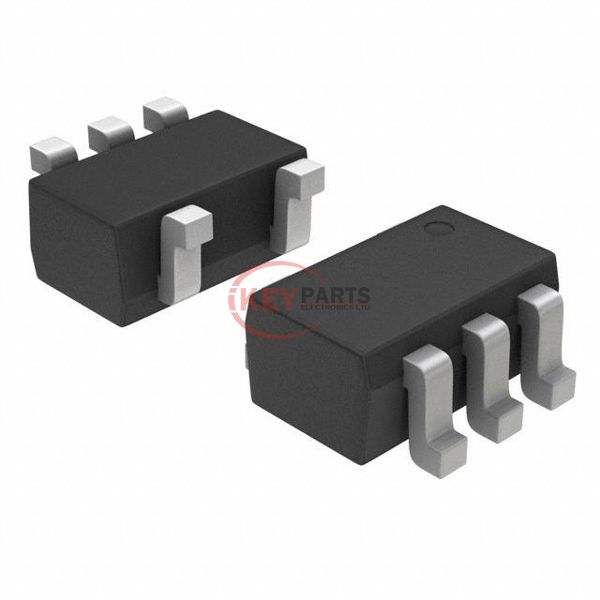

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSB1706DMW5T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSB1706DMW5T1G
Description
TRANS 2NPN PREBIAS 0.25W SC70
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSB1706DMW5T1G PDF
In Stock
21410
NSB1706DMW5T1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)4.7kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max250mW
Mounting TypeSurface Mount
Package / Case5-TSSOP, SC-70-5, SOT-353
Supplier Device PackageSC-88A (SC-70-5/SOT-353)
Request Quote Now
Request Quote Now

We can supply NSB1706DMW5T1G, use the request quote form to request NSB1706DMW5T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSB1706DMW5T1G. The price and lead time for NSB1706DMW5T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSB1706DMW5T1G. We look forward to working with you to establish long-term relations of cooperation.
