DMG563020R

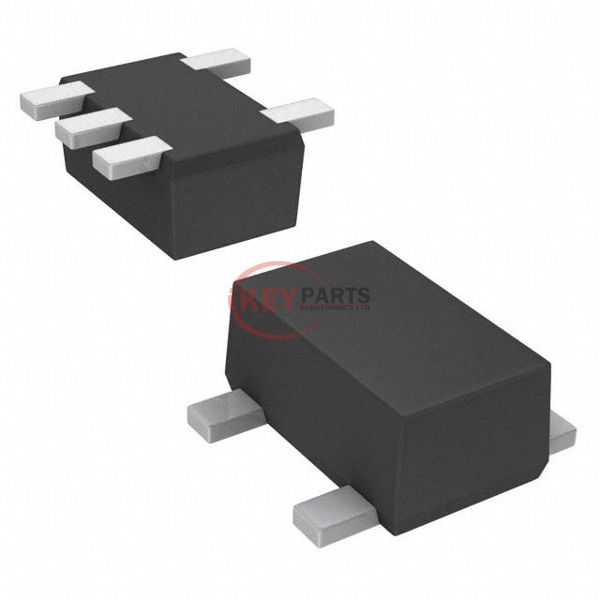

Enlarger

Lmages are for reference only See Product Specitications

Panasonic DMG563020R

Manufacturer :
Panasonic
Mfr. Part # :
DMG563020R
Description
TRANS PREBIAS NPN/PNP SMINI5
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMG563020R PDF
DMG563020R Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)22kOhms
Resistor - Emitter Base (R2)22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max150mW
Mounting TypeSurface Mount
Package / Case6-SMD (5 Leads), Flat Lead
Supplier Device PackageSMini5-F3-B
Request Quote Now
Request Quote Now

We can supply DMG563020R, use the request quote form to request DMG563020R pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMG563020R. The price and lead time for DMG563020R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMG563020R. We look forward to working with you to establish long-term relations of cooperation.
