DCX114YH-7

Enlarger

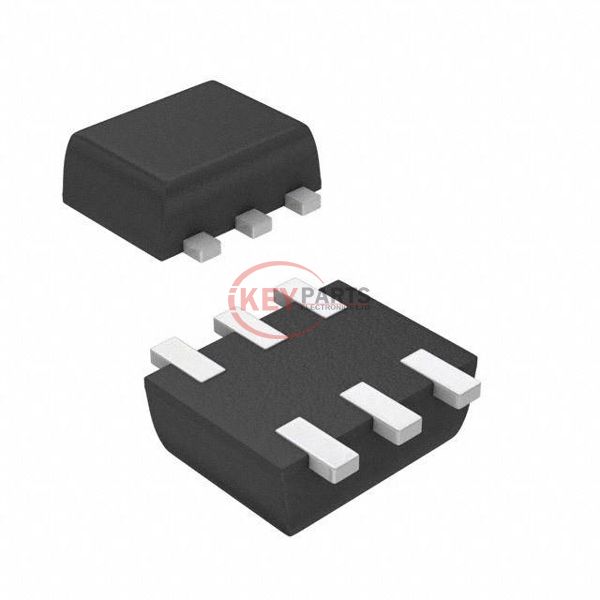

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DCX114YH-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DCX114YH-7
Description
TRANS PREBIAS NPN/PNP SOT563
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DCX114YH-7 PDF
In Stock
260
DCX114YH-7 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250MHz
Power - Max150mW
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
Request Quote Now
Request Quote Now

We can supply DCX114YH-7, use the request quote form to request DCX114YH-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DCX114YH-7. The price and lead time for DCX114YH-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DCX114YH-7. We look forward to working with you to establish long-term relations of cooperation.
