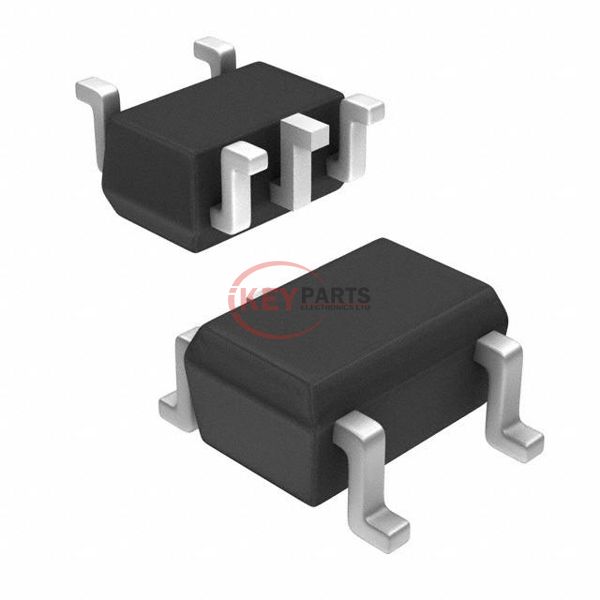

UMC5N-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) UMC5N-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
UMC5N-7
Description
TRANS NPN/PNP PREBIAS SOT353
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UMC5N-7 PDF
UMC5N-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)47kOhms, 4.7kOhms
Resistor - Emitter Base (R2)47kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce68 @ 5mA, 5V / 30 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250MHz
Power - Max150mW
Mounting TypeSurface Mount
Package / Case5-TSSOP, SC-70-5, SOT-353
Supplier Device PackageSOT-353
Request Quote Now
Request Quote Now

We can supply UMC5N-7, use the request quote form to request UMC5N-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UMC5N-7. The price and lead time for UMC5N-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UMC5N-7. We look forward to working with you to establish long-term relations of cooperation.
