EMF21-7

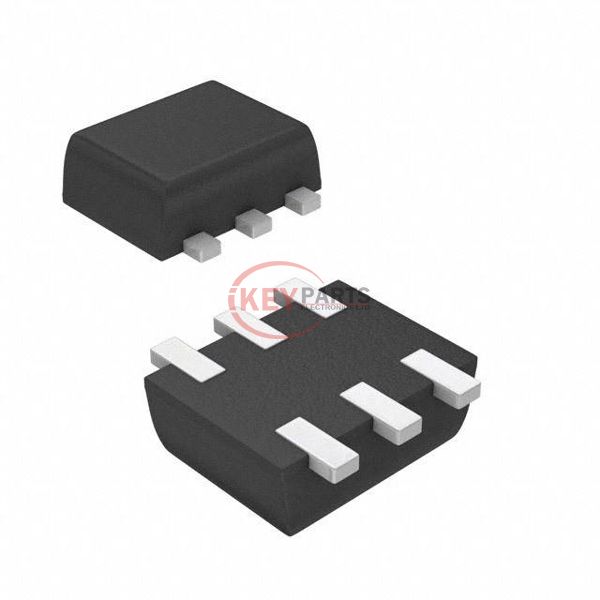

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) EMF21-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
EMF21-7
Description
TRANS NPN PREBIAS/PNP SOT563
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EMF21-7 PDF
EMF21-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor Type1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max)100mA, 500mA
Voltage - Collector Emitter Breakdown (Max)50V, 12V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 5mA, 5V / 270 @ 10mA, 2V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250MHz, 280MHz
Power - Max300mW
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
Request Quote Now
Request Quote Now

We can supply EMF21-7, use the request quote form to request EMF21-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EMF21-7. The price and lead time for EMF21-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EMF21-7. We look forward to working with you to establish long-term relations of cooperation.
