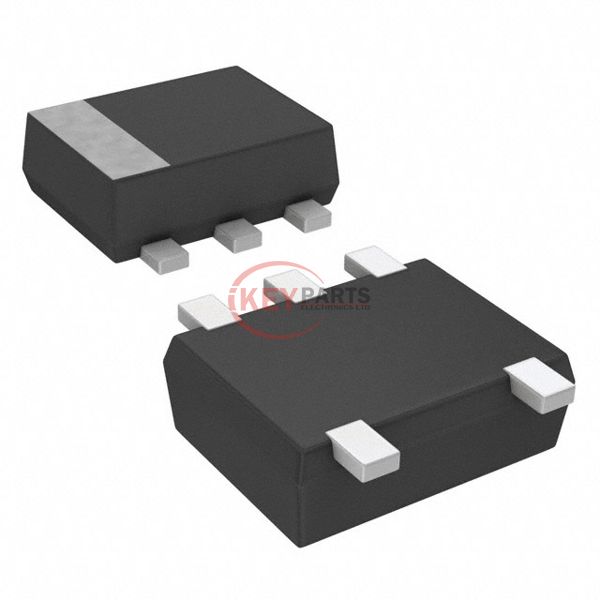

UP0339700L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic UP0339700L

Manufacturer :
Panasonic
Mfr. Part # :
UP0339700L
Description
TRANS PREBIAS NPN/PNP SSMINI5
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UP0339700L PDF
UP0339700L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V, 30V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)10kOhms, 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 5mA, 10V / 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA / 1.2V @ 330µA, 50mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz, 80MHz
Power - Max125mW
Mounting TypeSurface Mount
Package / CaseSOT-665
Supplier Device PackageSSMini5-F2
Request Quote Now
Request Quote Now

We can supply UP0339700L, use the request quote form to request UP0339700L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UP0339700L. The price and lead time for UP0339700L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UP0339700L. We look forward to working with you to establish long-term relations of cooperation.
