STGP20M65DF2

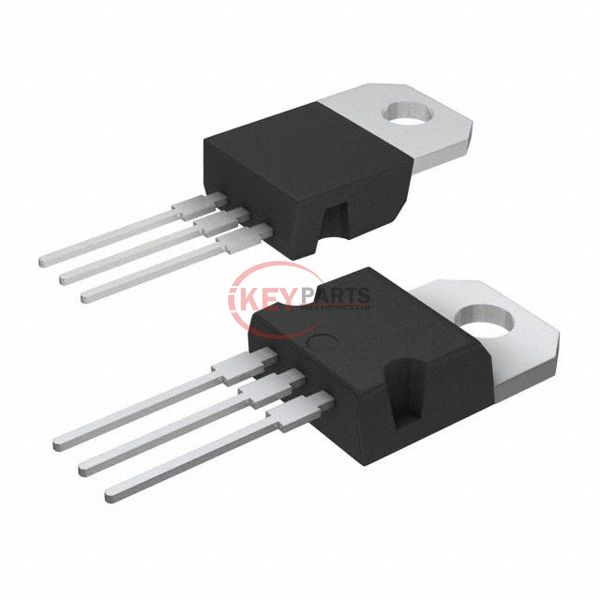

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STGP20M65DF2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGP20M65DF2
Description
IGBT TRENCH 650V 40A TO220
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGP20M65DF2 PDF
In Stock
931
STGP20M65DF2 Tech Specifications
SeriesM
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 20A
Power - Max166 W
Switching Energy140µJ (on), 560µJ (off)
Input TypeStandard
Gate Charge63 nC
Td (on/off) @ 25°C26ns/108ns
Test Condition400V, 20A, 12Ohm, 15V
Reverse Recovery Time (trr)166 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220
Request Quote Now
Request Quote Now

We can supply STGP20M65DF2, use the request quote form to request STGP20M65DF2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGP20M65DF2. The price and lead time for STGP20M65DF2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGP20M65DF2. We look forward to working with you to establish long-term relations of cooperation.
