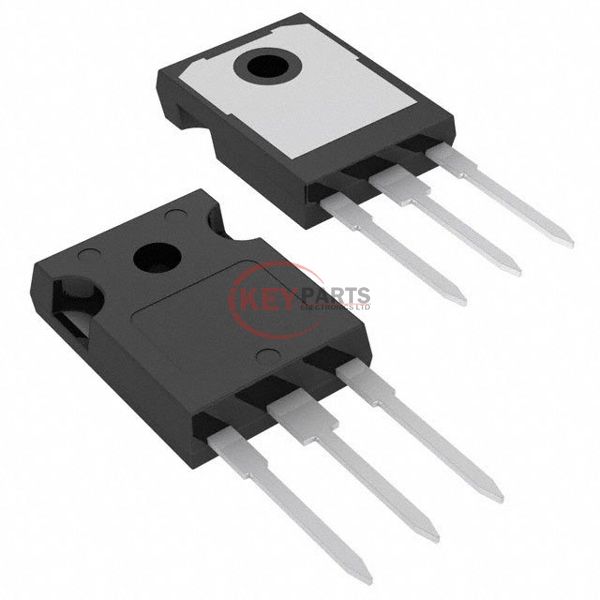

FGH40T120SMD-F155

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGH40T120SMD-F155

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGH40T120SMD-F155
Description
IGBT 1200V 80A 555W TO247-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGH40T120SMD-F155 PDF
FGH40T120SMD-F155 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max555 W
Switching Energy2.7mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge370 nC
Td (on/off) @ 25°C40ns/475ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)65 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply FGH40T120SMD-F155, use the request quote form to request FGH40T120SMD-F155 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGH40T120SMD-F155. The price and lead time for FGH40T120SMD-F155 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGH40T120SMD-F155. We look forward to working with you to establish long-term relations of cooperation.
