IXDH20N120D1

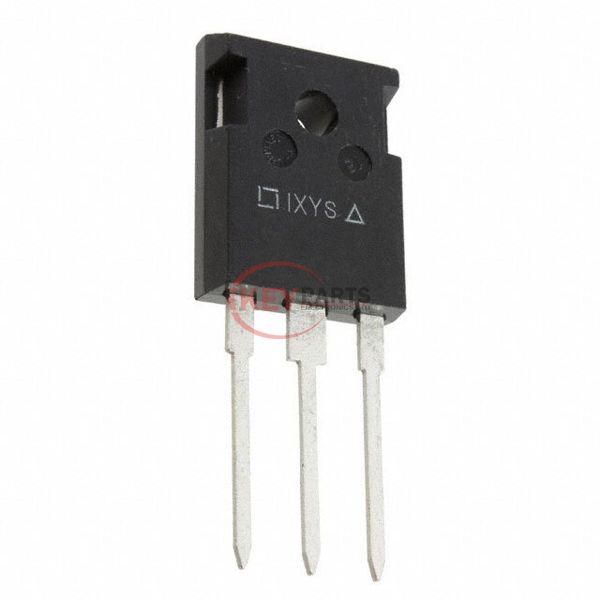

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXDH20N120D1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXDH20N120D1
Description
IGBT 1200V 38A 200W TO247AD
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXDH20N120D1 PDF
In Stock
286
IXDH20N120D1 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)38 A
Current - Collector Pulsed (Icm)50 A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 20A
Power - Max200 W
Switching Energy3.1mJ (on), 2.4mJ (off)
Input TypeStandard
Gate Charge70 nC
Td (on/off) @ 25°C-
Test Condition600V, 20A, 82Ohm, 15V
Reverse Recovery Time (trr)40 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-247AD
Request Quote Now
Request Quote Now

We can supply IXDH20N120D1, use the request quote form to request IXDH20N120D1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXDH20N120D1. The price and lead time for IXDH20N120D1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXDH20N120D1. We look forward to working with you to establish long-term relations of cooperation.
