STGWA40H120DF2

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STGWA40H120DF2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGWA40H120DF2
Description

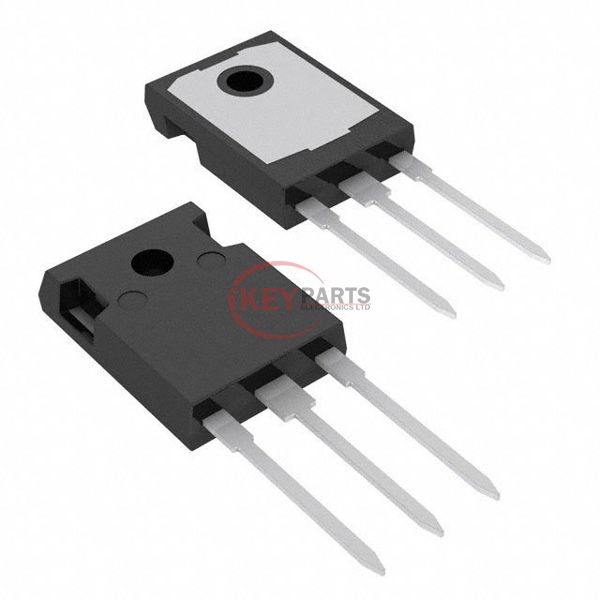

TRENCH GATE IGBT TO247 PKG
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGWA40H120DF2 PDF
In Stock
459
STGWA40H120DF2 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 40A
Power - Max468 W
Switching Energy1mJ (on), 1.32mJ (off)
Input TypeStandard
Gate Charge158 nC
Td (on/off) @ 25°C18ns/152ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)488 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now
