IXYH100N65A3

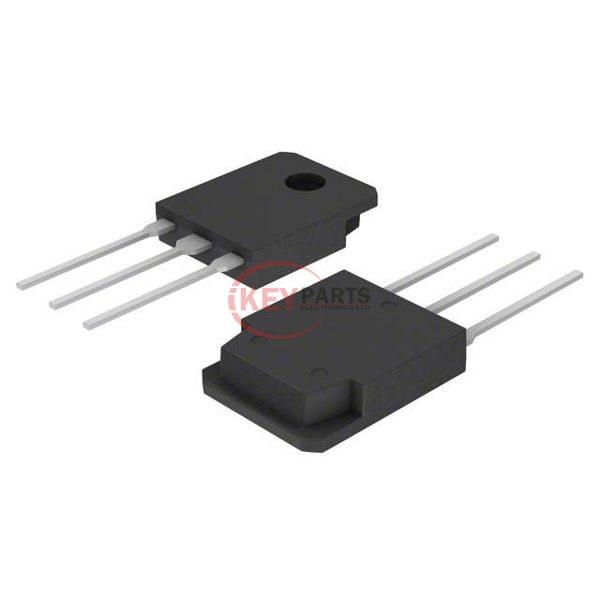

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYH100N65A3

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYH100N65A3
Description
IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYH100N65A3 PDF
IXYH100N65A3 Tech Specifications
SeriesXPT™, GenX3™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)240 A
Current - Collector Pulsed (Icm)480 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 70A
Power - Max470 W
Switching Energy3.15mJ (on), 2.2mJ (off)
Input TypeStandard
Gate Charge178 nC
Td (on/off) @ 25°C24ns/174ns
Test Condition400V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr)64 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply IXYH100N65A3, use the request quote form to request IXYH100N65A3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYH100N65A3. The price and lead time for IXYH100N65A3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYH100N65A3. We look forward to working with you to establish long-term relations of cooperation.
