IEWS20R5135IPBXKMA1

Enlarger

Lmages are for reference only See Product Specitications

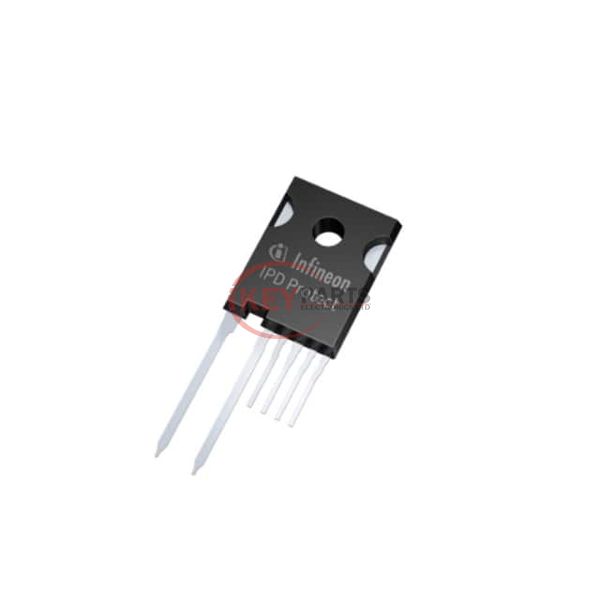

IR (Infineon Technologies) IEWS20R5135IPBXKMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IEWS20R5135IPBXKMA1
Description
IGBT PWR MOD 20A 1350V TO247-6
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IEWS20R5135IPBXKMA1 PDF
IEWS20R5135IPBXKMA1 Tech Specifications
SeriesTrenchStop®
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1350 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic1.85V @ 15V, 20A
Power - Max288 W
Switching Energy1.21mJ (off)
Input TypeLogic
Gate Charge-
Td (on/off) @ 25°C668ns/2034ns
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-6
Supplier Device PackagePG-TO247-6
Request Quote Now
Request Quote Now

We can supply IEWS20R5135IPBXKMA1, use the request quote form to request IEWS20R5135IPBXKMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IEWS20R5135IPBXKMA1. The price and lead time for IEWS20R5135IPBXKMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IEWS20R5135IPBXKMA1. We look forward to working with you to establish long-term relations of cooperation.
