IXYN30N170CV1

Enlarger

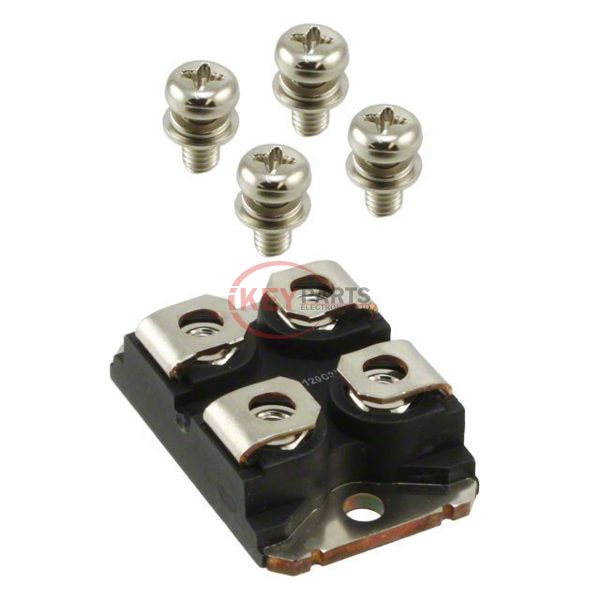

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYN30N170CV1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYN30N170CV1
Description
1700V/85A HIGH VOLTAGE XPT IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYN30N170CV1 PDF
IXYN30N170CV1 Tech Specifications
SeriesXPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)88 A
Current - Collector Pulsed (Icm)275 A
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 30A
Power - Max680 W
Switching Energy5.9mJ (on), 3.3mJ (off)
Input TypeStandard
Gate Charge140 nC
Td (on/off) @ 25°C28ns/150ns
Test Condition850V, 30A, 2.7Ohm, 15V
Reverse Recovery Time (trr)160 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
Request Quote Now
Request Quote Now

We can supply IXYN30N170CV1, use the request quote form to request IXYN30N170CV1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYN30N170CV1. The price and lead time for IXYN30N170CV1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYN30N170CV1. We look forward to working with you to establish long-term relations of cooperation.
