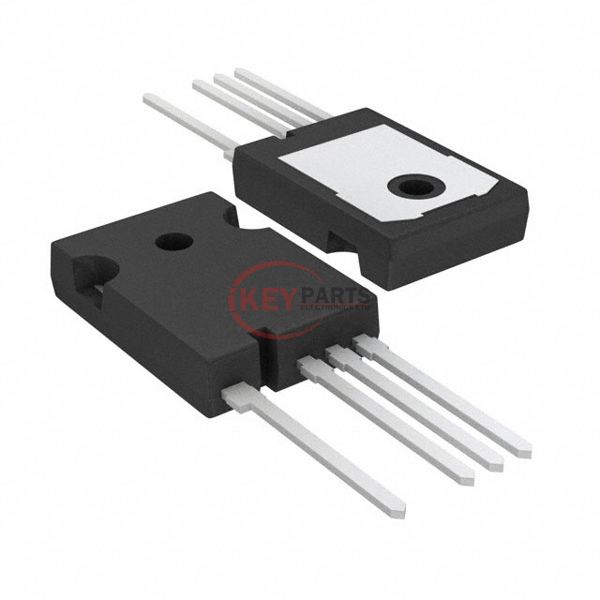

NGTB40N120FL2WAG

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NGTB40N120FL2WAG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NGTB40N120FL2WAG
Description
IGBT FIELD STOP 1200V 160A TO247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NGTB40N120FL2WAG PDF
NGTB40N120FL2WAG Tech Specifications
Series-
PackageTube
Part StatusLast Time Buy
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max536 W
Switching Energy1.7mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge313 nC
Td (on/off) @ 25°C30ns/145ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)240 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4L
Request Quote Now
Request Quote Now

We can supply NGTB40N120FL2WAG, use the request quote form to request NGTB40N120FL2WAG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NGTB40N120FL2WAG. The price and lead time for NGTB40N120FL2WAG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NGTB40N120FL2WAG. We look forward to working with you to establish long-term relations of cooperation.
