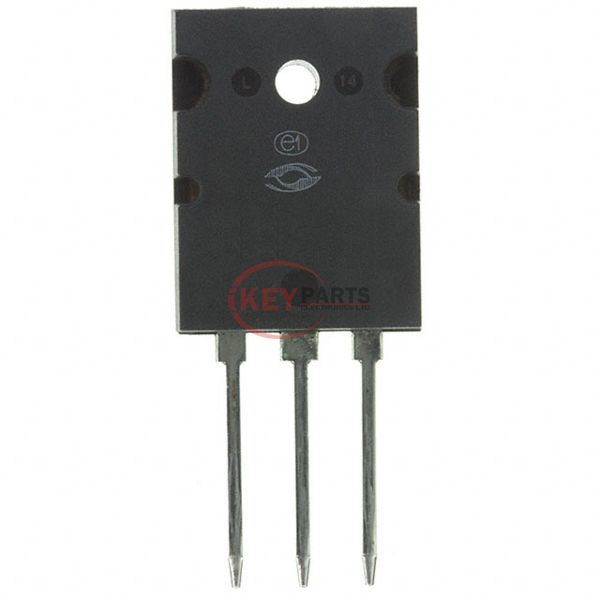

APT68GA60LD40

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT68GA60LD40

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT68GA60LD40
Description
IGBT 600V 121A 520W TO-264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT68GA60LD40 PDF
APT68GA60LD40 Tech Specifications
SeriesPOWER MOS 8™
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)121 A
Current - Collector Pulsed (Icm)202 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 40A
Power - Max520 W
Switching Energy715µJ (on), 607µJ (off)
Input TypeStandard
Gate Charge198 nC
Td (on/off) @ 25°C21ns/133ns
Test Condition400V, 40A, 4.7Ohm, 15V
Reverse Recovery Time (trr)22 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 [L]
Request Quote Now
Request Quote Now

We can supply APT68GA60LD40, use the request quote form to request APT68GA60LD40 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT68GA60LD40. The price and lead time for APT68GA60LD40 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT68GA60LD40. We look forward to working with you to establish long-term relations of cooperation.
