Series | - | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
IGBT Type | NPT, Trench Field Stop | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 84 A | |
Current - Collector Pulsed (Icm) | 105 A | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A | |
Power - Max | 379 W | |
Switching Energy | -, 2.315mJ (off) | |
Input Type | Standard | |
Gate Charge | 220 nC | |
Td (on/off) @ 25°C | 24ns, 300ns | |
Test Condition | 800V, 35A, 2.2Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

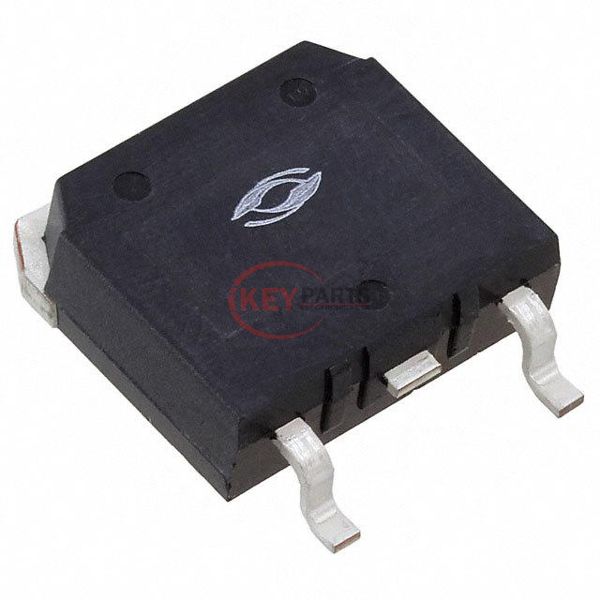

Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | |
Supplier Device Package | D3PAK |
We can supply APT35GN120SG/TR, use the request quote form to request APT35GN120SG/TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT35GN120SG/TR. The price and lead time for APT35GN120SG/TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT35GN120SG/TR. We look forward to working with you to establish long-term relations of cooperation.
![]() |
