FGY120T65SPD-F085

Enlarger

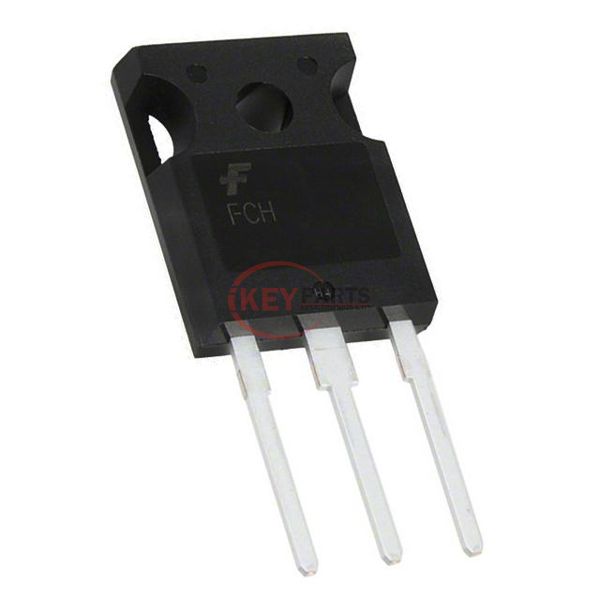

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGY120T65SPD-F085

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGY120T65SPD-F085
Description
IGBT 650V 240A 882W TO-247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGY120T65SPD-F085 PDF
In Stock
277181350
FGY120T65SPD-F085 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)240 A
Current - Collector Pulsed (Icm)378 A
Vce(on) (Max) @ Vge, Ic1.85V @ 15V, 120A
Power - Max882 W
Switching Energy6.8µJ (on), 3.5µJ (off)
Input TypeStandard
Gate Charge162 nC
Td (on/off) @ 25°C53ns/102ns
Test Condition400V, 120A, 5Ohm, 15V
Reverse Recovery Time (trr)123 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply FGY120T65SPD-F085, use the request quote form to request FGY120T65SPD-F085 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGY120T65SPD-F085. The price and lead time for FGY120T65SPD-F085 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGY120T65SPD-F085. We look forward to working with you to establish long-term relations of cooperation.
