IXXR100N60B3H1

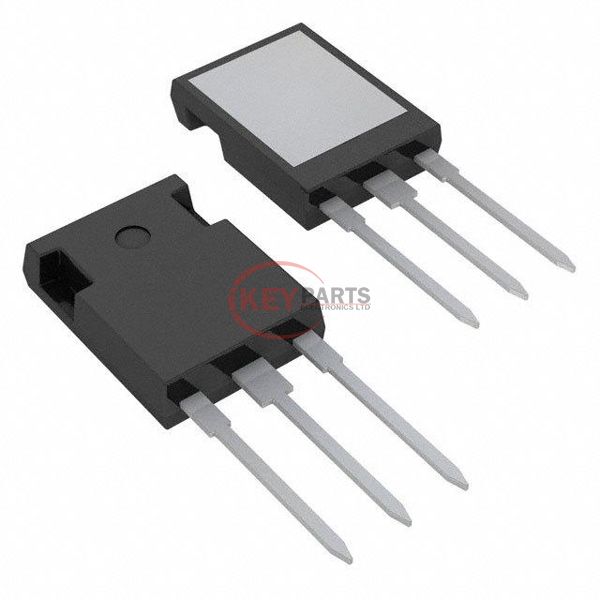

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXXR100N60B3H1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXXR100N60B3H1
Description
IGBT 600V 145A 400W ISOPLUS247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXXR100N60B3H1 PDF
In Stock
916
IXXR100N60B3H1 Tech Specifications
SeriesGenX3™, XPT™
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)145 A
Current - Collector Pulsed (Icm)440 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 70A
Power - Max400 W
Switching Energy1.9mJ (on), 2mJ (off)
Input TypeStandard
Gate Charge143 nC
Td (on/off) @ 25°C30ns/120ns
Test Condition360V, 70A, 2Ohm, 15V
Reverse Recovery Time (trr)140 ns
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageISOPLUS247™
Request Quote Now
Request Quote Now

We can supply IXXR100N60B3H1, use the request quote form to request IXXR100N60B3H1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXXR100N60B3H1. The price and lead time for IXXR100N60B3H1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXXR100N60B3H1. We look forward to working with you to establish long-term relations of cooperation.
