FGAF40S65AQ

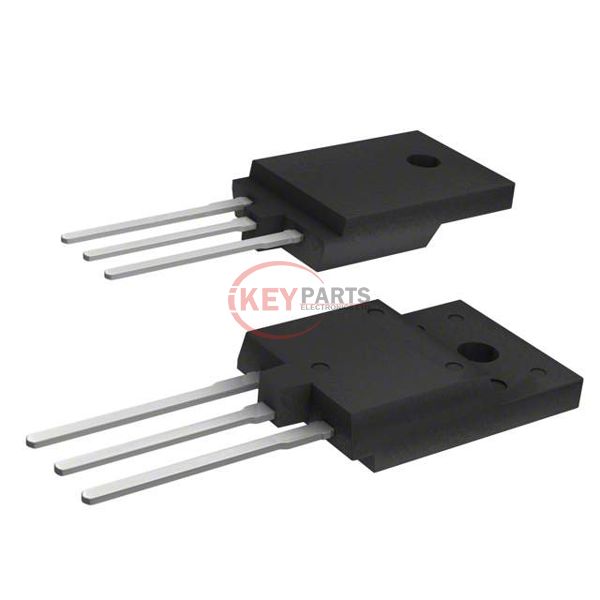

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGAF40S65AQ

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGAF40S65AQ
Description
650V 40A FS4 SA IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGAF40S65AQ PDF
In Stock
319
FGAF40S65AQ Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 40A
Power - Max94 W
Switching Energy132µJ (on), 62µJ (off)
Input TypeStandard
Gate Charge75 nC
Td (on/off) @ 25°C17.8ns/81.6ns
Test Condition400V, 10A, 6Ohm, 15V
Reverse Recovery Time (trr)274 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF-3
Request Quote Now
Request Quote Now

We can supply FGAF40S65AQ, use the request quote form to request FGAF40S65AQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGAF40S65AQ. The price and lead time for FGAF40S65AQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGAF40S65AQ. We look forward to working with you to establish long-term relations of cooperation.
