NTE3322

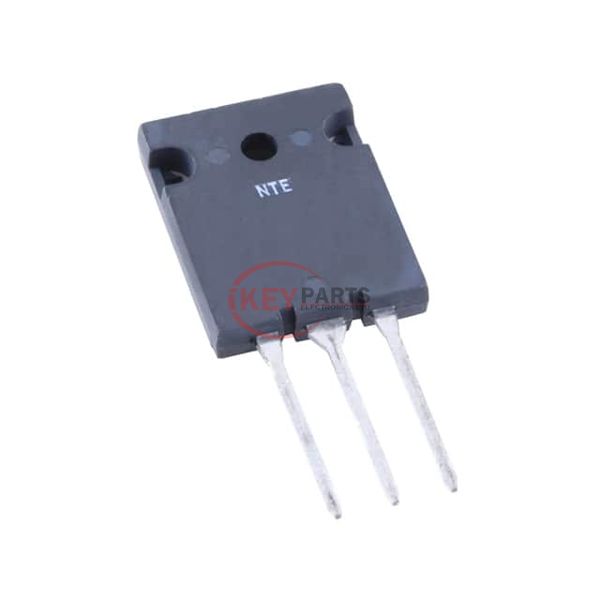

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE3322

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE3322
Description
IGBT-900V 60AMP
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE3322 PDF
NTE3322 Tech Specifications
Series-
PackageBag
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)900 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 60A
Power - Max170 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C460ns/600ns
Test Condition-
Reverse Recovery Time (trr)2.5 µs
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply NTE3322, use the request quote form to request NTE3322 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE3322. The price and lead time for NTE3322 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE3322. We look forward to working with you to establish long-term relations of cooperation.
