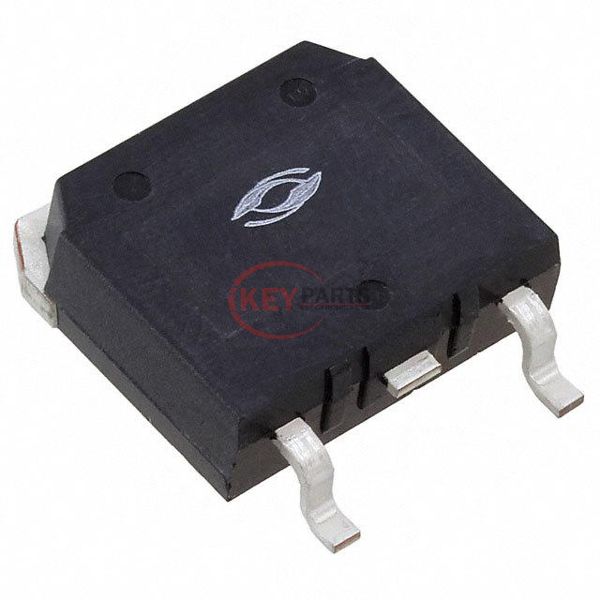

APT36GA60SD15

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT36GA60SD15

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT36GA60SD15
Description
IGBT PT COMBI 600V 36A TO-268
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT36GA60SD15 PDF
APT36GA60SD15 Tech Specifications
SeriesPOWER MOS 8®
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)65 A
Current - Collector Pulsed (Icm)109 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 20A
Power - Max290 W
Switching Energy307µJ (on), 254µJ (off)
Input TypeStandard
Gate Charge102 nC
Td (on/off) @ 25°C16ns/122ns
Test Condition400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)19 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device PackageD3PAK
Request Quote Now
Request Quote Now

We can supply APT36GA60SD15, use the request quote form to request APT36GA60SD15 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT36GA60SD15. The price and lead time for APT36GA60SD15 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT36GA60SD15. We look forward to working with you to establish long-term relations of cooperation.
