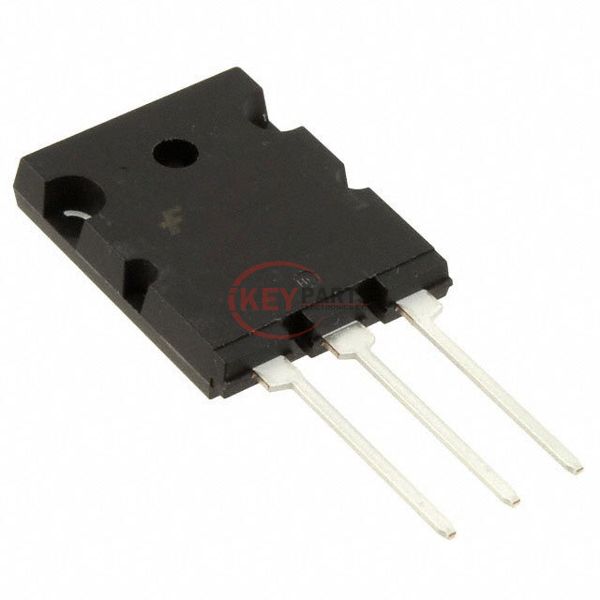

SGL40N150DTU

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics SGL40N150DTU

Manufacturer :
Rochester Electronics
Mfr. Part # :
SGL40N150DTU
Description
N-CHANNEL IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SGL40N150DTU PDF
SGL40N150DTU Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1.5 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic4.7V @ 15V, 40A
Power - Max200 W
Switching Energy-
Input TypeStandard
Gate Charge140 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)300 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply SGL40N150DTU, use the request quote form to request SGL40N150DTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SGL40N150DTU. The price and lead time for SGL40N150DTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SGL40N150DTU. We look forward to working with you to establish long-term relations of cooperation.
