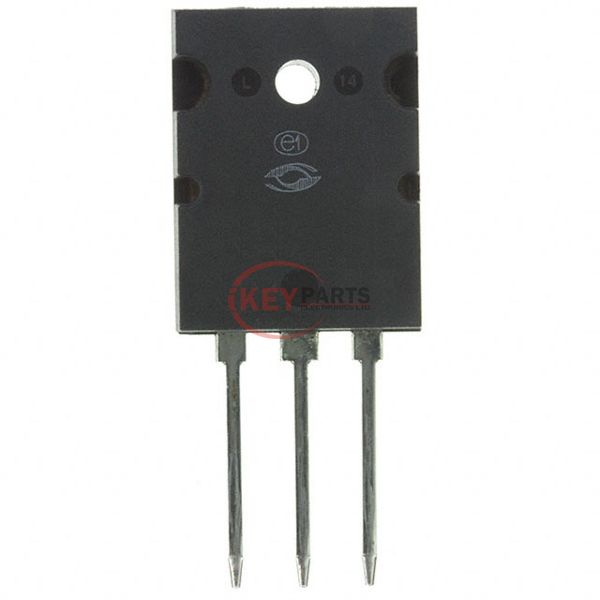

APT50GT120LRG

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT50GT120LRG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT50GT120LRG
Description
IGBT NPT SINGLE 1200V 50A TO-264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT50GT120LRG PDF
APT50GT120LRG Tech Specifications
SeriesThunderbolt IGBT®
PackageTube
Part StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)50 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 50A
Power - Max625 W
Switching Energy-, 2.33mJ (off)
Input TypeStandard
Gate Charge340 nC
Td (on/off) @ 25°C24ns/230ns
Test Condition800V, 50A, 4.7Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 (L)
Request Quote Now
Request Quote Now

We can supply APT50GT120LRG, use the request quote form to request APT50GT120LRG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT50GT120LRG. The price and lead time for APT50GT120LRG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT50GT120LRG. We look forward to working with you to establish long-term relations of cooperation.
