STGW15H120F2

Enlarger

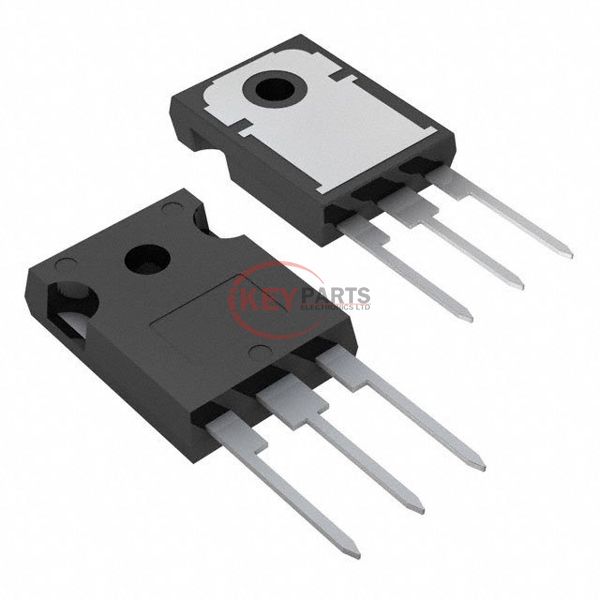

Lmages are for reference only See Product Specitications

STMicroelectronics STGW15H120F2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGW15H120F2
Description
IGBT H-SERIES 1200V 15A TO-247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGW15H120F2 PDF
STGW15H120F2 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 15A
Power - Max259 W
Switching Energy380µJ (on), 370µJ (off)
Input TypeStandard
Gate Charge67 nC
Td (on/off) @ 25°C23ns/111ns
Test Condition600V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now
