STGW100H65FB2-4

Enlarger

Lmages are for reference only See Product Specitications

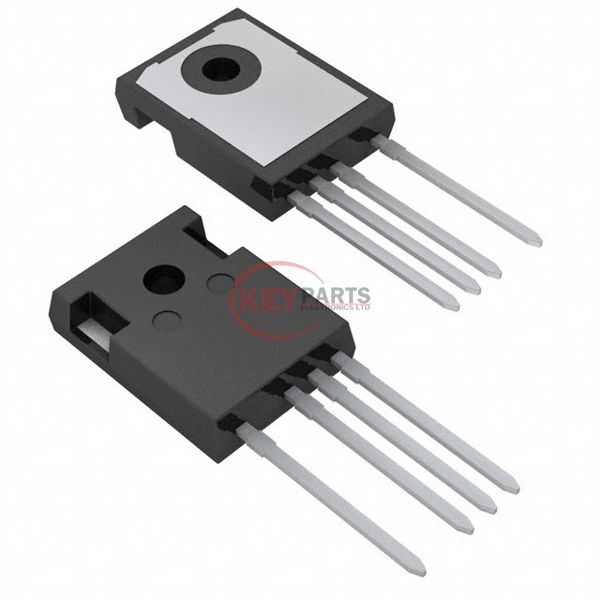

STMicroelectronics STGW100H65FB2-4

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGW100H65FB2-4
Description
TRENCH GATE FIELD-STOP, 650 V, 1
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGW100H65FB2-4 PDF
STGW100H65FB2-4 Tech Specifications
SeriesHB2
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)145 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 100A
Power - Max441 W
Switching Energy-
Input TypeStandard
Gate Charge288 nC
Td (on/off) @ 25°C23ns/141ns
Test Condition400V, 100A, 3.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4
Request Quote Now
Request Quote Now

We can supply STGW100H65FB2-4, use the request quote form to request STGW100H65FB2-4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STGW100H65FB2-4. The price and lead time for STGW100H65FB2-4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STGW100H65FB2-4. We look forward to working with you to establish long-term relations of cooperation.
