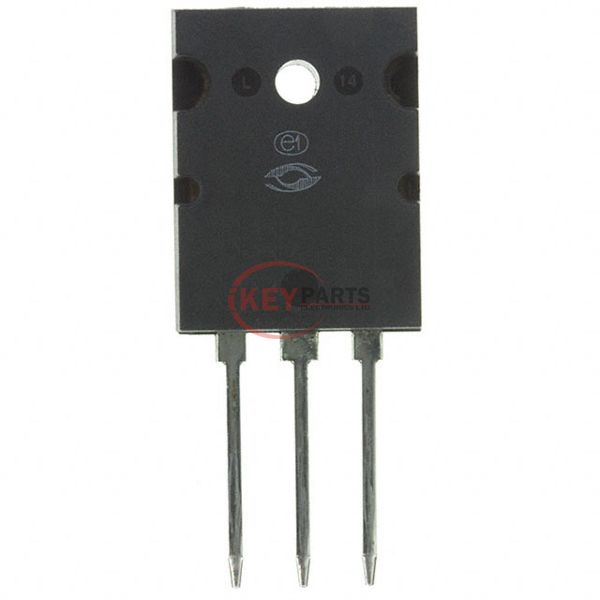

APT70GR120L

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT70GR120L

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT70GR120L
Description
IGBT 1200V 160A 961W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT70GR120L PDF
APT70GR120L Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)280 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 70A
Power - Max961 W
Switching Energy3.82mJ (on), 2.58mJ (off)
Input TypeStandard
Gate Charge544 nC
Td (on/off) @ 25°C33ns/278ns
Test Condition600V, 70A, 4.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264
Request Quote Now
Request Quote Now

We can supply APT70GR120L, use the request quote form to request APT70GR120L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT70GR120L. The price and lead time for APT70GR120L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT70GR120L. We look forward to working with you to establish long-term relations of cooperation.
