MIW40N120-BP

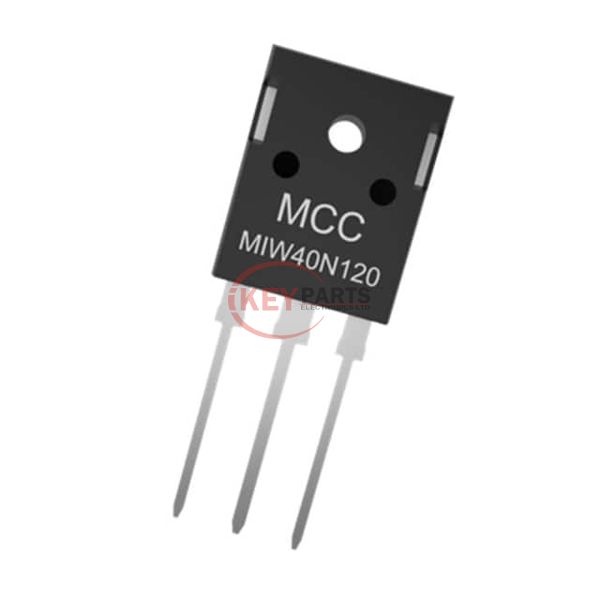

Enlarger

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) MIW40N120-BP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
MIW40N120-BP
Description
IGBT 1200V 40A TO-247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MIW40N120-BP PDF
In Stock
360
MIW40N120-BP Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max277 W
Switching Energy3.3mJ (on), 1.4mJ (off)
Input TypeStandard
Gate Charge239 nC
Td (on/off) @ 25°C62ns/265ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)80 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply MIW40N120-BP, use the request quote form to request MIW40N120-BP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MIW40N120-BP. The price and lead time for MIW40N120-BP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MIW40N120-BP. We look forward to working with you to establish long-term relations of cooperation.
