RJH1CV7DPK-00#T0

Enlarger

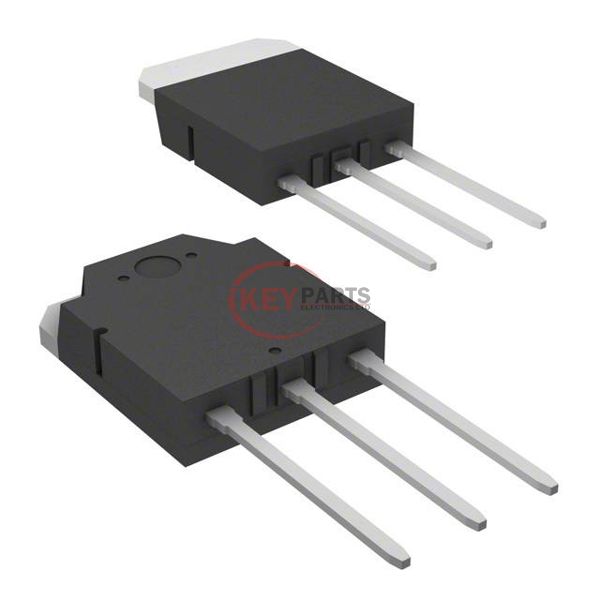

Lmages are for reference only See Product Specitications

Renesas Electronics America RJH1CV7DPK-00#T0

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJH1CV7DPK-00#T0
Description
IGBT 1200V 70A 320W TO-3P
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJH1CV7DPK-00#T0 PDF
In Stock
591
RJH1CV7DPK-00#T0 Tech Specifications
Series-
PackageTube
Part StatusLast Time Buy
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 35A
Power - Max320 W
Switching Energy3.2mJ (on), 2.5mJ (off)
Input TypeStandard
Gate Charge166 nC
Td (on/off) @ 25°C53ns/185ns
Test Condition600V, 35A, 5Ohm, 15V
Reverse Recovery Time (trr)200 ns
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply RJH1CV7DPK-00#T0, use the request quote form to request RJH1CV7DPK-00#T0 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJH1CV7DPK-00#T0. The price and lead time for RJH1CV7DPK-00#T0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJH1CV7DPK-00#T0. We look forward to working with you to establish long-term relations of cooperation.
