MMIX1X200N60B3H1

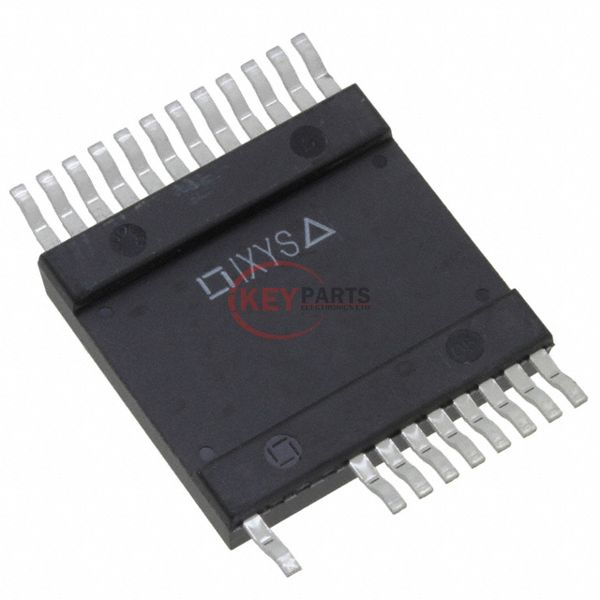

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse MMIX1X200N60B3H1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
MMIX1X200N60B3H1
Description
IGBT 600V 175A 520W SMPD
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MMIX1X200N60B3H1 PDF
In Stock
38900
MMIX1X200N60B3H1 Tech Specifications
SeriesGenX3™, XPT™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)175 A
Current - Collector Pulsed (Icm)1000 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 100A
Power - Max520 W
Switching Energy2.85mJ (on), 2.9mJ (off)
Input TypeStandard
Gate Charge315 nC
Td (on/off) @ 25°C48ns/160ns
Test Condition360V, 100A, 1Ohm, 15V
Reverse Recovery Time (trr)100 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-PowerSMD, 21 Leads
Supplier Device Package24-SMPD
Request Quote Now
Request Quote Now

We can supply MMIX1X200N60B3H1, use the request quote form to request MMIX1X200N60B3H1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MMIX1X200N60B3H1. The price and lead time for MMIX1X200N60B3H1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MMIX1X200N60B3H1. We look forward to working with you to establish long-term relations of cooperation.
