DGTD65T40S2PT

Enlarger

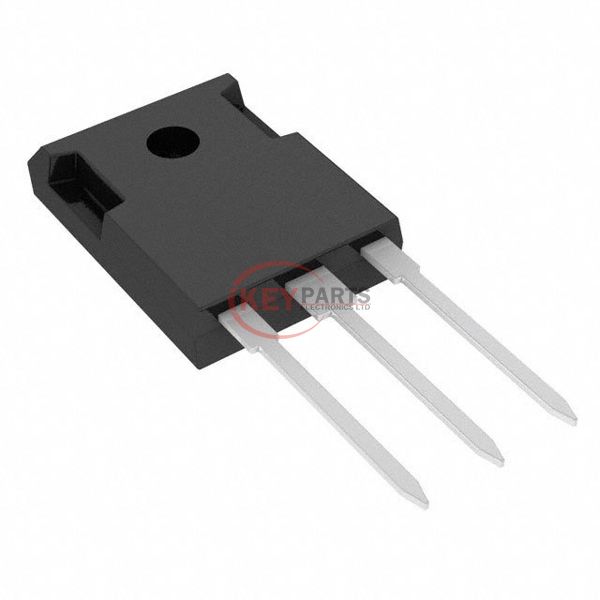

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DGTD65T40S2PT

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DGTD65T40S2PT
Description
IGBT 600V-X TO247 TUBE 0.45K
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DGTD65T40S2PT PDF
DGTD65T40S2PT Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 40A
Power - Max230 W
Switching Energy500µJ (on), 400µJ (off)
Input TypeStandard
Gate Charge60 nC
Td (on/off) @ 25°C6ns/55ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)60 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply DGTD65T40S2PT, use the request quote form to request DGTD65T40S2PT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DGTD65T40S2PT. The price and lead time for DGTD65T40S2PT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DGTD65T40S2PT. We look forward to working with you to establish long-term relations of cooperation.
