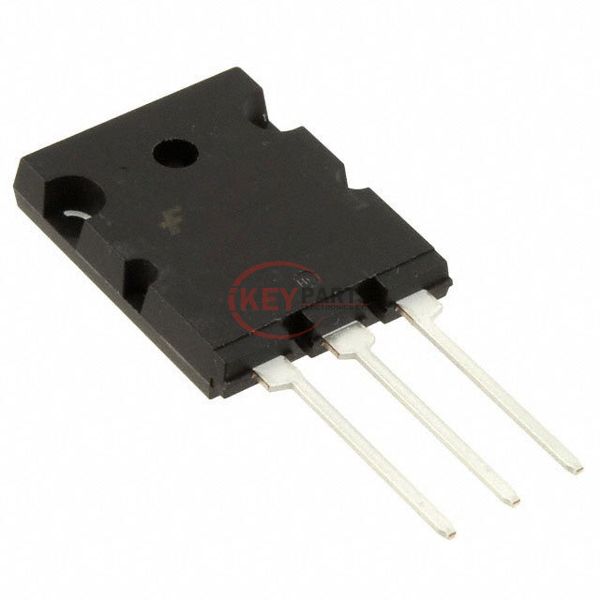

FGL60N100BNTDTU

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGL60N100BNTDTU

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGL60N100BNTDTU
Description
IGBT 1000V 60A 180W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGL60N100BNTDTU PDF
FGL60N100BNTDTU Tech Specifications
Series-
PackageTube
Part StatusNot For New Designs
IGBT TypeNPT and Trench
Voltage - Collector Emitter Breakdown (Max)1000 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 60A
Power - Max180 W
Switching Energy-
Input TypeStandard
Gate Charge275 nC
Td (on/off) @ 25°C140ns/630ns
Test Condition600V, 60A, 51Ohm, 15V
Reverse Recovery Time (trr)1.2 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply FGL60N100BNTDTU, use the request quote form to request FGL60N100BNTDTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGL60N100BNTDTU. The price and lead time for FGL60N100BNTDTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGL60N100BNTDTU. We look forward to working with you to establish long-term relations of cooperation.
