IKY50N120CH3XKSA1

Enlarger

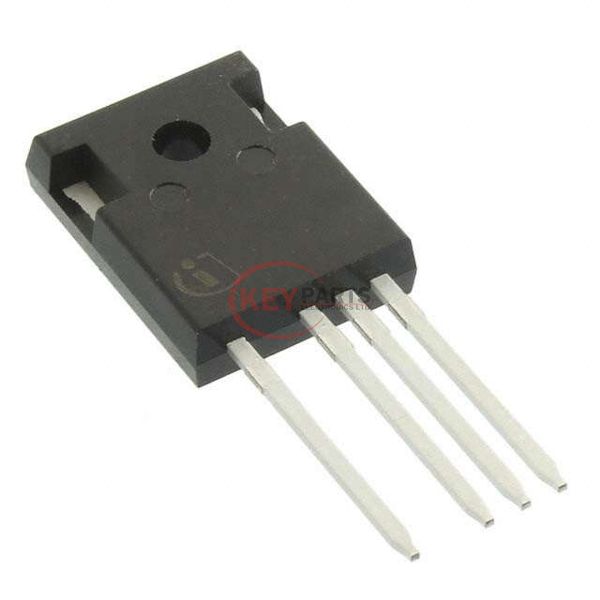

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IKY50N120CH3XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IKY50N120CH3XKSA1
Description
IGBT 1200V 100A TO247-4
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IKY50N120CH3XKSA1 PDF
IKY50N120CH3XKSA1 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.35V @ 15V, 50A
Power - Max652 W
Switching Energy2.3mJ (on), 1.9mJ (off)
Input TypeStandard
Gate Charge235 nC
Td (on/off) @ 25°C32ns/296ns
Test Condition600V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr)255 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
Request Quote Now
Request Quote Now

We can supply IKY50N120CH3XKSA1, use the request quote form to request IKY50N120CH3XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKY50N120CH3XKSA1. The price and lead time for IKY50N120CH3XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKY50N120CH3XKSA1. We look forward to working with you to establish long-term relations of cooperation.
