AP3156FVG-7

Enlarger

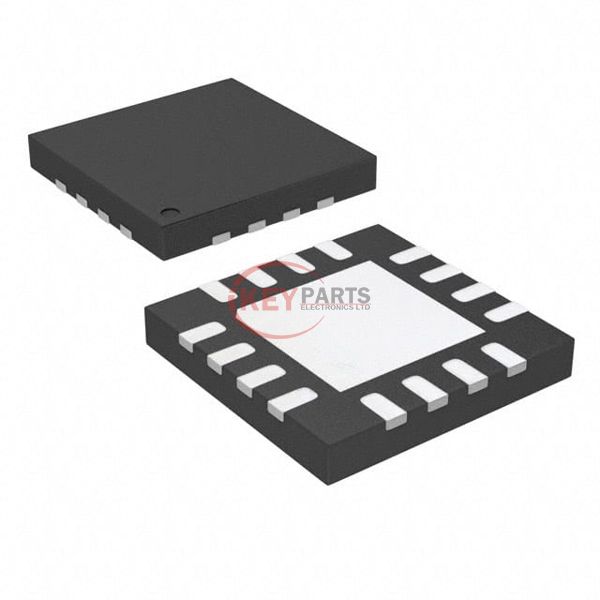

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) AP3156FVG-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
AP3156FVG-7
Description
IC LED DRIVER RGLTR 20MA 16QFN
Catalog
PMIC - LED Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AP3156FVG-7 PDF
AP3156FVG-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeDC DC Regulator
TopologySwitched Capacitor (Charge Pump)
Internal Switch(s)Yes
Number of Outputs6
Voltage - Supply (Min)2.7V
Voltage - Supply (Max)5.5V
Voltage - Output-
Current - Output / Channel20mA
Frequency500kHz ~ 2MHz
Dimming-
ApplicationsBacklight, Camera Flash
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-UFQFN Exposed Pad
Supplier Device PackageQFN4040-16
Request Quote Now
Request Quote Now

We can supply AP3156FVG-7, use the request quote form to request AP3156FVG-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AP3156FVG-7. The price and lead time for AP3156FVG-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AP3156FVG-7. We look forward to working with you to establish long-term relations of cooperation.
