Series | - | |
Package | Bulk | |
Part Status | Not For New Designs | |
Type | DC DC Controller | |
Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) | |
Internal Switch(s) | No | |
Number of Outputs | 16 | |
Voltage - Supply (Min) | 8V | |
Voltage - Supply (Max) | 26.5V | |
Voltage - Output | 36V | |
Current - Output / Channel | 55mA | |
Frequency | 20kHz ~ 1MHz | |
Dimming | PWM | |
Applications | Backlight, Lighting | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Mounting Type | Surface Mount | |

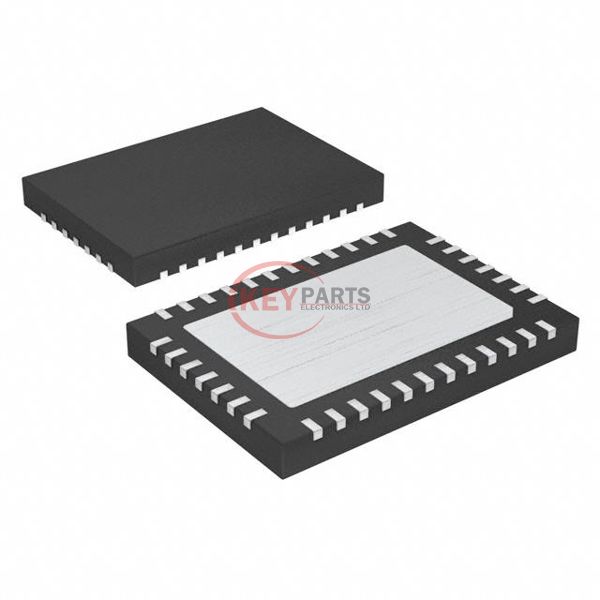

Package / Case | 38-WFQFN Exposed Pad | |
Supplier Device Package | 38-TQFN (5x7) |
We can supply MAX16809ATU+, use the request quote form to request MAX16809ATU+ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX16809ATU+. The price and lead time for MAX16809ATU+ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX16809ATU+. We look forward to working with you to establish long-term relations of cooperation.
![]() |
